Payment & Shipping Terms:
|Product Name:||Sticker Label Cutter Machine||Body Frame:||Desktop|
|Max. Cutting Width:||280mm||Software:||Labelstudio|
|Repeating Precision:||0.082mm||G.W / N.W:||110/75kgs (154.3lb/121.3lb)|
roll to roll label printer,
label die cutting machine
Stickers, Glossy paper, PET, PP, PVC, PC, Wall Paper, roll to roll label cutter

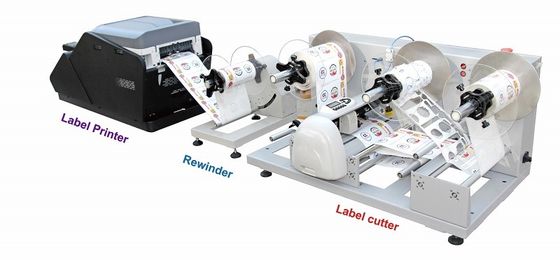

A roll to roll label finisher with LabelStudio software
The VICUT VCT-LCR is a roll-to-roll label cutter for fully automatic production of free-form labels and tags in short and medium quantities. With optical positioning system and professional software Label Studio, the device enables you cut labels, warning signs, logos and many others of any size.
|Model||Roll Label Cutter VCT-LCR|
|Working mode||Roll to roll|
|Max. applicable media width||340mm|
|Max. cutting width||280mm|
|Max blank label size||300x300mm|
|Max. cutting speed (straight-line)||37.8” /s (960mm/s)|
|Max. down force||750g (3g/step)|
|CPU||64 BIT DSP 32M flash|
|Noise||35 DB or less|
|Ambient temperature||5 - 35 degrees|
|Support file format||HPGL commands|
|Machine dimensions||98x71x46cm (3.22x2.33x1.51ft)|
|G.W / N.W||110/75kgs (154.3lb/121.3lb)|
1. Compatible with any roll to roll label printer, cut any shape prints.
2. The layout software Label Studio will generate both file with register marks for printing and cutting.
3. Optical sensor positioning system scans register marks automatically, ensures contour cutting.
4. Automatic matrix removal system continuously weeds label waste for a clean, professional finish.
5. Automatic web tension bars provide highly stable die-cutting performance and registration for remarkable consistency.
Control panel: with English interface, it supports online file transfer with U flash memory, users can easily adjust the cutting speed , pressure and movement of the media, etc.
Waste-removal System: With special designed feeding system, the media is regulated tightly to ensure the precisely and fast cutting. Besides, it offers a discharge system to remove the waste area for easier next labeling process. You can use the two buttons to control the waste removal function ON/OFF, easily and convenient.
Label Studio software: The layout software Label studio will generate both file for printing and cutting. Register marks created and printed by Labelstudio are automatically scanned, the labels are plotted in high precision.
Process materials including Stickers, Glossy paper, PET, PP, PVC, PC, Wall Paper, material thickness up to 300gsm.
