Product Details:
Payment & Shipping Terms:
|
| Product Name: | Roll To Roll Label Cutter | Software: | Labelstudio |
|---|---|---|---|
| Max. Cutting Speed: | 37.8” /s (960mm/s) | Working Mode: | Roll To Roll |
| Machine Power: | 150w | Machine Dimensions: | 98x71x46cm (3.22x2.33x1.51ft) |
| High Light: | roll to roll label printer,digital label finisher |
||
Stickers, Glossy paper, PET, PP, PVC, PC, Wall Paper, roll to roll label cutter
A roll to roll label finisher with LabelStudio software

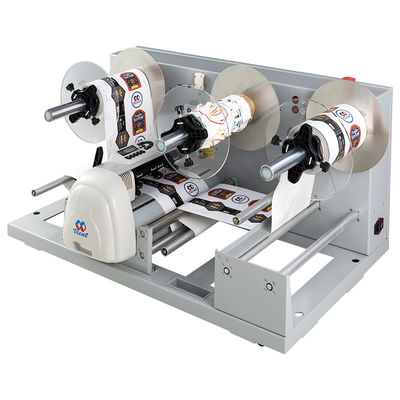

The VICUT VCT-LCR is a roll-to-roll label cutter for fully automatic production of free-form labels and tags in short and medium quantities. With optical positioning system and professional software Label Studio, the device enables you cut labels, warning signs, logos and many others of any size.
Description:
VCT-LCR is the perfect roll to roll label cutter for labels and tags of all shapes and sizes for small to medium quantities, making it an ideal flexible machine for use in large production sites, as well as small and medium-sized companies, such as the food and beverage industry. This machine can fulfill all your needs in the field of product labeling.
Specifications:
| Model | Roll Label Cutter VCT-LCR |
| Working mode | Roll to roll |
| Software | Labelstudio |
| Max. applicable media width | 340mm |
| Max. cutting width | 280mm |
| Max blank label size | 300x300mm |
| Max. cutting speed (straight-line) | 37.8” /s (960mm/s) |
| Max. down force | 750g (3g/step) |
| CPU | 64 BIT DSP 32M flash |
| Repeating precision | 0.082mm |
| Noise | 35 DB or less |
| Ambient temperature | 5 - 35 degrees |
| Support file format | HPGL commands |
| Machine power | 150w |
| Machine dimensions | 98x71x46cm (3.22x2.33x1.51ft) |
| G.W / N.W | 110/75kgs (154.3lb/121.3lb) |
| Packing size | 45”x27.5”x31.5”(114x70x80cm)/0.64cbm |
Competitive Advantage:
1. Compatible with any roll to roll label printer, cut any shape prints.
2. The layout software Label Studio will generate both file with register marks for printing and cutting.
3. Optical sensor positioning system scans register marks automatically, ensures contour cutting.
4. Automatic matrix removal system continuously weeds label waste for a clean, professional finish.
5. Automatic web tension bars provide highly stable die-cutting performance and registration for remarkable consistency.
Applications:
Process materials including Stickers, Glossy paper, PET, PP, PVC, PC, Wall Paper, material thickness up to 300gsm.
