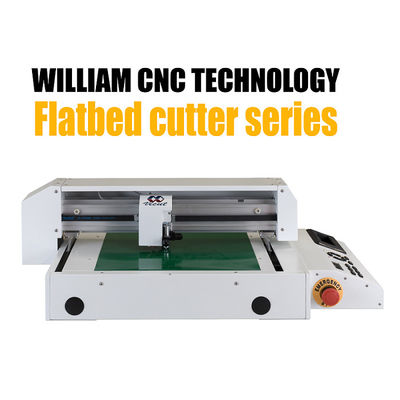

PC Panel Cardboard Die Cutting Machine Fast Digital Paper Cutter

PC Panel Cardboard Die Cutting Machine  Fast Digital Paper Cutter
PC Panel Cardboard Die Cutting Machine  Fast Digital Paper Cutter

Large Image :  PC Panel Cardboard Die Cutting Machine Fast Digital Paper Cutter

Product Details:

Place of Origin: China
Brand Name: VICUT
Certification: CE,BV,SGS,TUV
Model Number: VCT-MFC4560

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: negotiable according to order quantity
Packaging Details: Plywooden case
Delivery Time: 7-15 working days upon payment
Payment Terms: 50% deposit, payoff balance before shipping
Supply Ability: 300sets/month
Detailed Product Description
Flatbed Cutter: VCT-MFC4560 Scan Device: Optical Sensor/CCD Camera
Working Voltage: 110V-240V Optional Mechanical Resolution: 0.01254mm
Working Mode: PC Control ,Windows64bit Supported Max.Cutting Speed: 600mm/s
High Light:

digital paper cutting machine

,

flatbed vinyl cutter

Vicut 450*600mm Mini Flatbed Cutter MFC4560 with Dragoncut Software for Creasing and Cutting on DIY paper





Quick Detail:

Flatbed Cutter Plotter & Creasing & Perforating



The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.



Using advanced digital contour cutting technology, the Flatbed Cutter Plotter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and even drawing.

Two models flatbed plotter cutters are available, the desktop MFC4560 model offers maximum media area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing MFC6090 model offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.



Specifications



Thchinical Parameters
Flatbed Cutter VCT-MFC4560
Body Frame Desktop (optional stand)
Max.Cutting Speed 600mm/s
Max.Down Force 510g
Interface Direct USB
Control System Servo
Cutting Software Dragoncut Pro
Mchine Power 220V/110V
Mechanical Resolution 0.01254
Programmable Resolution HPGL0.025mm
Max.Cutting Thickness 1.2mm
Repeat Precision ≤0.05
Media Fixture Method Vacuum Suction With Vacuum Pump
Working Mode PC Control ,Windows64bit Supported
Working Environment 5-35 DeGREESe,No Dust ,Flat Working Platform
Dual Cutting Plotter Blade & Ball-bearing Creasing Tool(a pen tool included)
Working Method Contour Full Cutting & Kiss Cutting, Creasing ,Drawing
Registration System Advanced Registration Mark Sensing System (ARMS)
N.W/G.W 44Kg/72Kg
Dimensions 105×82×32M (WXLXH)
Packing Size 123×100×46CM (0.57CBM)



Competitive Advantage:



1. Contour cutter cuts thin films and card up to 500gsm / 600micron.

2. Pneumatic vacuum suction of media.

3. Dual cutting head, cutting and creasing in one compact unit.

4. Cuts typical SRA3 sheet in 30-60 seconds.

5. Servo drivers control. Silent, precise and powerful servo drives for best cutting results.



Details Description:



Dual Cutting head: The MFC series flatbed cutter utilizes a dual tool head, the dual tool systems includs one blade tool and one creasing tool, both tools are operated independently for cutting and creasing, the finished product can be cut and creased in one smooth operation, reducing operation time and improving productivity.



Advanced Barcode recognition system: High resolution optical registration system which reads the registration marks on the media and compares the position with the original value from the digital file. The DragonCut Pro software then acts accordingly to correct linear and angular positional differences by automatically adjusting the cut lines.



Cutting Software: The Professional cutting software DragonCut Pro not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also generates cutting contours and folding lines. so, you can rapidly produce super accurate signage and decals with pinpoint contour cutting to achieve the most outstanding and professional results.





Applications:



Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.

Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.

PVC: Less than 0.4mm

Reflective Film: All types

Sandblast, Hard paper: Less than 450gsm

Magnetic Sticker: Less than 600micron

PET: Less than 0.3mm, vinyl, etc.





Accessories Box including:

3 boxes cutting blades, 3pcs blades inside of each box.

1pcs USB Line

1pcs Power Line

1pcs Pen Holder with a pen

1pcs Blade Holder

1pcs creasing tool

1pcs Wrench for install the creasing tool

1pcs fuse for stock

1 set DragonCut Pro software
