|Product Name:||Digital Die Cutting Machine||Working Mode:||PC Control, Windows 64bit Supported|
|Power:||900W||Max. Cutting Speed:||600mm/s|
|Programmable Resolution:||HPGL0.025mm||Repeat Precision:||≤0.05mm|
flatbed die cutter,
electric die cutting machine

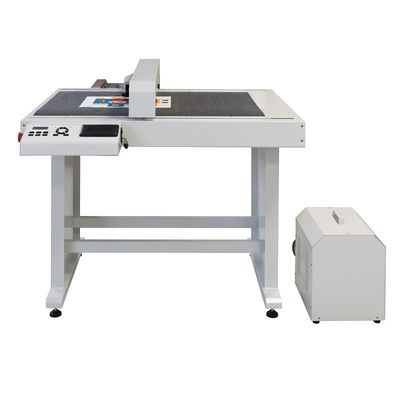

High Precision Die Cutting Machine Sample Box Packaging Flatbed Cutter MFC6090
The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Flatbed Cutter processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Two models flatbed plotters are available, the desktop MFC4560 model flatbed cutter offers maximum cutting area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing MFC6090 model flatbed cutter offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.
|SPECIFICATIONS FOR FLATBED CUTTER|
|Body Frame||With Stand|
|Effective Cutting Area||600mm x 900mm(1.97x2.95ft)|
|Dual Cutting Head||Blade & Ball-bearing Creasing Tool (a pen tool included)|
|Working Method||Contour Full Cutting & Kiss Cutting, Creasing, Drawing|
|Registration System||Advanced Registration Mark Sensing System (ARMS)|
|Cutting Software||DragonCut Pro|
|Working Mode||PC Control, Windows 64bit supported|
|Max. Cutting Speed||600mm/s|
|Max. down Force||1000g|
|Max. Cutting Thickness||1.2mm|
|Media Fixture Metho||Vacuum suction with Vacuum Pump|
|Working Voltage||110V-240V optional|
|Working Environment||5 to 35 Degrees, no dust, flat working platform|
|Dimensions||145 x 138 x 110cm(LXWXH)|
1. Direct USB makes the flatbed cutter reliable and convenient.
2. Advanced digital contour cutting technology- high resolution optical sensor read barcode on the printing files automatically.
3. Plug and play, simple installation, no additional drivers needed.
4. No cutting dies required.
5. Contour cutter cuts thin films and card up to 500gsm / 600micron.
Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
Accessories Box including:
3 boxes cutting blades, 3pcs blades inside of each box.
1pcs USB Line
1pcs Power Line
1pcs Pen Holder with a pen
1pcs Blade Holder
1pcs creasing tool
1pcs Wrench for install the creasing tool
1pcs fuse for stock
1 set DragonCut Pro software
