Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mini Digital Flatbed Cutter | Scan Device: | Optical Sensor/CCD Camera |
|---|---|---|---|
| Repeat Precision: | ≤0.05mm | Mechanical Resolution: | 0.01254mm |
| Control System: | Servo | Application: | On-demand Packaging And Sheet Card Cutting System |
| High Light: | digital paper cutting machine,flatbed vinyl cutter |
||

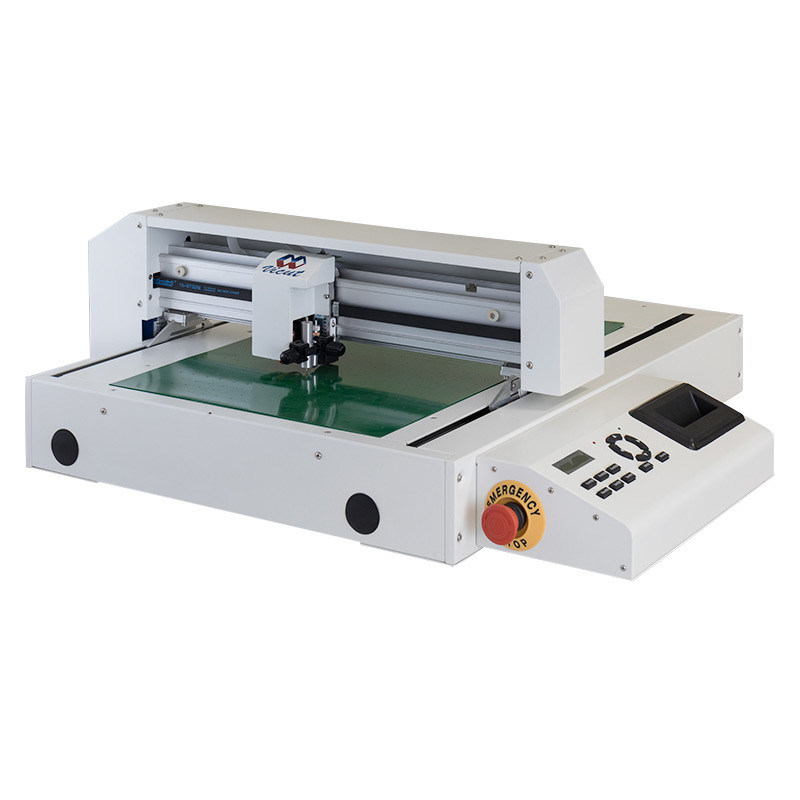

Vicut 450*600mm Mini Flatbed Cutter MFC4560 with Dragoncut Software for Creasing and Cutting on DIY paper
Quick Detail:
Flatbed Cutter Plotter & Creasing & Perforating
The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
Using advanced digital contour cutting technology, the Flatbed Cutter Plotter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and even drawing.
Two models flatbed plotter cutters are available, the desktop MFC4560 model offers maximum media area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing MFC6090 model offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.
Specifications
| Technical Parameters | |||
| Flatbed Cutter Model | VCT-MFC4560 | VCT-MFC6090 | |
| Scan Device | Optical Sensor/CCD Camera | Optical Sensor/CCD Camera | |
| Body Frame | Desktop (optional stand) | With Stand | |
| Effective Cutting Area | 450mm x 600mm(1.47x1.97ft) | 600mm x 900mm(1.97x2.95ft) | |
| Effective Contour Cutting Area | 459mm x 611mm (1.51x2.0ft) | 598 x 887mm(1.96x2.91ft) | |
| Dual Cutting Head | Blade & Ball-bearing Creasing Tool (a calibration tool included) | ||
| Working Method | full cutting & kiss cut ,crease, perforate ,draw | ||
| Registration System | Advanced Registration Mark Sensing System (ARMS) | ||
| Cutting Software | DragonCut Pro | ||
| Interface | USB | ||
| Working Mode | PC Control, Windows 64bit supported | ||
| Mechanical Resolution | 0.01254mm | ||
| Programmable resolution | HPGL0.025mm | ||
| Max. Cutting Speed | 600mm/s-process 1 linear meter in 1.4 seconds | ||
| Max. down Force | 510g | ||
| Max. Cutting Thickness | 1.2mm | ||
| Media Fixture Method |
Vacuum suction with Vacuum Pump (muffler is optional for MFC6090) |
||
| Repeat Precision | ≤0.05mm | ||
| Control system | Servo | ||
| Working Voltage | 110V-240V optional | ||
| Working Environment | 5 to 35 Degrees, no dust, flat working platform | ||
| Power | 600W | 900W | |
| N.W/G.W | 40KG/72KG | 72KG/100KG | |
| Dimension | 105x79cm(3.44x2.59ft) | 145x138cm(4.75x4.53ft) | |
| Packing Size | 123×100×46cm(0.57CBM) | 142×131×59cm(1.1CBM) | |
Competitive Advantage:
1. Direct USB makes the flatbed cutter reliable and convenient.
2. Pneumatic vacuum suction of media.
3. Dual cutting head, cutting and creasing in one compact unit.
4. Cuts typical SRA3 sheet in 30-60 seconds.
5. Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
Accessories Box including:
3 boxes cutting blades, 3pcs blades inside of each box.
1pcs USB Line
1pcs Power Line
1pcs Pen Holder with a pen
1pcs Blade Holder
1pcs creasing tool
1pcs Wrench for install the creasing tool
1pcs fuse for stock
1 set DragonCut Pro software
