|Product Name:||High Speed Electric Paper Trimmer||Starting Mode:||Open Cover Protection|
|Media Fixing Method:||Cylinder Down Pressure Fixed||Power:||600W|
|Control Panel:||LED Panel||Cutting Speed:||1-1200mm/s|
electric guillotine paper cutter,
electric rotary trimmer

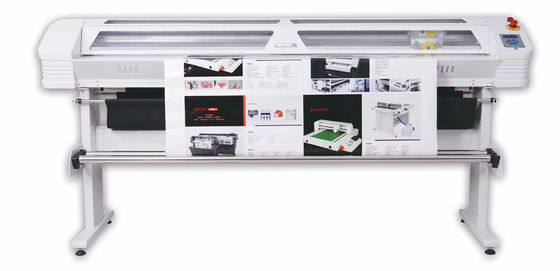

Electric Paper Trimmer
With the universal and application of UV direct printing KT board, PVC board, flying edge and other businesses, the post-press technology has become a pain point for the majority of users.
The VICUT trimmer cutter TM series is automatic digital finishing machinery which is widely used for cutting boards and rolls in advertising industry. It is controlled by system software on the machine, no cutting dies required. It changed the traditional cutting method and reduces employee fatigue, makes your finishing job easier and faster.
The machine can work 24 hours continually and it’s able to handle mass production.
|Max. paper feed width||1700mm||2500mm||1700mm|
|Cutting method||high-speed spinning wheel blades|
|Blade material||tungsten alloy steel/high-speed steel|
|Positioning sensor type||optical positioning|
|Starting mode||hand switch button/ foot pedal|
|Safety mode||open cover protection|
more than 50K times
(KT paper as example)
more than 100K times
(PP paper as example)
|Drive mode||high power brush-less motor|
|Media fixing method||cylinder down pressure fixed|
|Positioning method||red laser positioning|
|Media cutting thickness||0.5mm～8mm(depending on the selected medium)|
|Max. material thickness||8mm|
|Control panel||LED panel (Chinese/English)|
|Power voltage||100-120V(AC)/3.0A. 200-220V(AC)/2.0A, 50/60Hz Optional|
|Cutting material||KT board, PVC board, rubber pad, etc||
PP Paper, sticker,
printing media, etc.
|Weight||115/85Kg ± 15Kg||180/121Kg ± 15Kg||115/85Kg ± 15Kg|
1. Cutting blades material use tungsten alloy steel which allows for continually cutting 50k
2. Large cutting stroke allows for cutting wide range materials with different thickness.
3. Environmental friendly design, no pollution, automatic computer program control.
4. Users can set up start cutting point and cutting width freely, cutting speed is also adjustable.
5. High safety performance. The machine equipped with muti-protection system, it stops working when you open upper cover or touch the moving carriage.
Cutting materials including KT board, PVC board, rubber pad, PP Paper, sticker, printing media, etc.
1. High-speed spinning wheel blades, made from tungsten alloy steel, can cut more than 50,000 times (depending to the media).
2. Blade holder. Special inside structure, fix the blades tightly and enables cutting smoothly.
3. Blade holder. Special inside structure, fix the blades tightly and enables cutting smoothly.
4. User friendly LED control panel, easy operation.
5. Red light optical sensor. It reads crop marks on the printing boards so that the cutting blades will cut through according to the cutting lines.
6. Red light optical sensor. It reads crop marks on the printing boards so that the cutting blades will cut through according to the cutting lines.
