| Product Name: | MFC6090 Digital Flatbed Cutter | Scan Device: | Optical Sensor/CCD Camera |
|---|---|---|---|
| Working Voltage: | 110V-240V Optional | Body Frame: | With Stand |
| Control System: | Servo | Application: | On-demand Packaging And Sheet Card Cutting System |
| High Light: | flatbed vinyl cutter,digital cardboard cutter |
||

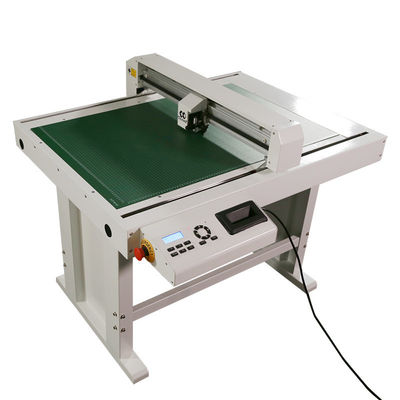

High Precision Die Cutting Machine Sample Box Packaging Flatbed Cutter MFC6090
Quick Detail:
The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. Flatbed Cutter processing material including paper, card, synthetics, films and kinds of labels, up to 500gsm.
| Specifications | |||
| Flatbed Cutter | VCT-MFC4560 | VCT-MFC6090 | |
| Scan Device | Optical Sensor/CCD Camera | Optical Sensor/CCD Camera | |
| Body Frame | Desktop (optional stand) | With Stand | |
| Effective Cutting Area | 450mm x 600mm(1.47x1.97ft) | 600mm x 900mm(1.97x2.95ft) | |
| Effective Contour Cutting Area | 459mm x 611mm (1.51x2.0ft) | 598 x 887mm(1.96x2.91ft) | |
| Dual Cutting Head | Blade & Ball-bearing Creasing Tool (a calibration tool included) | ||
| Working Method | full cutting & kiss cut ,crease, perforate ,draw | ||
| Registration System | Advanced Registration Mark Sensing System (ARMS) | ||
| Cutting Software | DragonCut Pro | ||
| Interface | USB | ||
| Working Mode | PC Control, Windows 64bit supported | ||
| Mechanical Resolution | 0.01254mm | ||
| Programmable resolution | HPGL0.025mm | ||
| Max. Cutting Speed | 600mm/s-process 1 linear meter in 1.4 seconds | ||
| Max. down Force | 510g | ||
| Max. Cutting Thickness | 1.2mm | ||
| Media Fixture Method |
Vacuum suction with Vacuum Pump (muffler is optional for MFC6090) |
||
| Repeat Precision | ≤0.05mm | ||
| Control system | Servo | ||
| Working Voltage | 110V-240V optional | ||
| Working Environment | 5 to 35 Degrees, no dust, flat working platform | ||
| Power | 600W | 900W | |
| N.W/G.W | 40KG/72KG | 72KG/100KG | |
| Dimension | 105x79cm(3.44x2.59ft) | 145x138cm(4.75x4.53ft) | |
| Packing Size | 123×100×46cm(0.57CBM) | 142×131×59cm(1.1CBM) | |
Competitive Advantage:
1. Contour cutter cuts thin films and card up to 500gsm / 600micron.
2. Pneumatic vacuum suction of media.
3. Dual cutting head, cutting and creasing in one compact unit.
4. Cuts typical SRA3 sheet in 30-60 seconds.
5. Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
Details Description
| Seq. | Picture | Detail Instruction |
| 1. |  |
Vacuum Pump: Two different power pumps 400W and 750W available for 4560 model cutter and 6090 model cutter. One vacuum pump controls the whole working table. With a steel panel cover outside of vacuum pump, for less noise and good appearance. Muffler is optional for 750W vacuum pump. |
| 2. | |
Vacuum Table: With high powered vacuum suction system, the printed sheets are held securely in place on either a green self-healing, or grey felt cutting mat. Suction passes through the perforated hold down table and the mat, keep sheets flat and secure, removing the risk of lifting during operation.
|
| 3. | |
Emergency button: When it meet something wrong, first time put down this button, and it will stop working |
Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm
Reflective Film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm, vinyl, etc.
